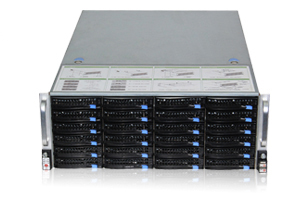

NVSS8324 / NVSS8724

  • ● Max. 256 IPCs connection

    ● Support 24 hot-swap HDDs

    ● Support RAID5, RAID6 storage

    ● 1200W Redundant power

 Max. 256 Channel 8MP/5MP/4MP/3MP/1080P IPC connection

 HDMI and VGA synchronous output, HDMI support 4K

Instant playback, ICON search, 7 Intelligent analysis function

64 channel POS integration

 Remote Desktop with TeamViewer

ONVIF 2.3 conformance.

Support H.264/H.265 hardware GPU decode

 Support P2P function,

 Support Windows CMS, Mac/Android/iOS NVSS Client

Support software RAID5, RAID6 storage

Support hardware watchdog

NVSS8XXX series
Main Processor NVSS8324:Intel core i3 CPU;NVSS8724:Intel core i7 CPU
Operating System 64bit Linux OS
Memory NVSS8324:8GB;NVSS8724:16GB
Bandwidth NVSS8324:384Mbps ;NVSS8724:512Mbps
Recording NVSS8324:128ch@8MP or 4MP or 1080P ;NVSS8724:256ch@8MP or 4MP or 1080P
Preview NVSS8324:9ch@8MP or 16ch@4MP or 25ch@1080P or 64ch@D1;NVSS8724:16ch@8MP or 28ch@4MP or 49ch@1080P or 128ch@D1
Playback NVSS8324:9ch@8MP or 12ch@4MP or 16ch@1080P & 720P;NVSS8724:16ch@8MP or 16ch@4MP or 16ch@1080P & 720P
Audio 1ch audio & 1ch Mic in, 1ch audio out
Recording Mode Manual, Schedule(Continuous, Motion detection, Sensor Alarm), Stop
Alarm Recording Motion detection, External alarm
Backup Mode Network download, USB HDD, Mobile DVD
Video Output 1ch VGA + 2ch HDMI interface; VGA+HDMI or 2 HDMI output, HDMI support 4K output
Multi-screen Display Main:1, 4, 6, 9, 13, 16, 20, 25, 28, 33, 36, 40, 49, 64, 81, 100, 121, 144 split; sub:1, 4, 6, 9, 13, 16 split.
HDMI/VGA Output 3840*2160(HDMI) or 1920*1080 or 1680*1050 or 1440*900 or 1280*1024 or 1024*768
Interface 2 RJ-45 ports(1000M)
Power Supply 1200W Redundancy Power,100V-240VAC
Hard Disk 24 SATA, Max. 10TB for each; Independent HDD rack, support hot swap, RAID storage
USB 6 USB ports
Working Environment Temperature: 0˚C~60˚C; Humidity: 10%~80% ( non-condensation)
Dimension 650mm×440mm×176mm (W×D×H); 4U case
Weight 28Kg
