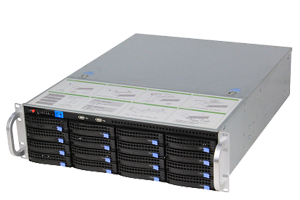

NVSS8116 / NVSS8316 / NVSS8716

  • ● Max. 256 IPCs connection

    ● Support 16 hot-swap  HDDs

    ● Support RAID5, RAID6 storage

    ● 800W Redundant power

● Max. 256 Channel 12MP/8MP/5MP/4MP/3MP/1080P IPC connection

● HDMI and VGA synchronous output, HDMI support 4K

● Instant playback,ICON search, 7 Intelligent analysis function

● 64 channel POS integration

● Remote Desktop with TeamViewer

● ONVIF 2.3 conformance

● Support H.264/H.265 hardware GPU decode

● Support P2P function

● Support software RAID5, RAID6 storage

● Support Windows CMS, Mac/Android/iOS NVSS Client

● Support hardware watchdog

● Support Face Recognition

NVSS8XXX series
Main Processor NVSS8116:Intel celeron CPU;NVSS8316:Intel core i3 CPU;NVSS8716:Intel core i7 CPU
Operating System 64bit Linux OS
Memory NVSS8116:4GB;NVSS8316:8GB;NVSS8716:16GB
Bandwidth NVSS8116:160Mbps ;NVSS8316:384Mbps ;NVSS8716:512Mbps
Recording NVSS8116:64ch@8MP or 4MP or 1080P ;NVSS8316:128ch@8MP or 4MP or 1080P;NVSS8716:256ch@8MP or 4MP or 1080P
Preview NVSS8116:6ch@8MP or 9ch@4MP or 16ch@1080P or 36ch@D1;NVSS8316:9ch@8MP or 16ch@4MP or 25ch@1080P or 64ch@D1;NVSS8716:16ch@8MP or 28ch@4MP or 49ch@1080P or 144ch@D1
Playback NVSS8116:6ch@8MP or 9ch@4MP or 16ch@1080P & 720P;NVSS8316:9ch@8MP or 16ch@4MP / 1080P / 720P;NVSS8716:16ch@8MP / 4MP / 1080P / 720P
Audio 1ch audio & 1ch Mic in, 1ch audio out
Recording Mode Manual, Schedule(Continuous, Motion detection, Sensor Alarm), Stop
Alarm Recording Motion detection, External alarm
Backup Mode Network download, USB HDD, Mobile DVD
Video Output 1ch VGA + 2ch HDMI interface; VGA+HDMI or 2 HDMI output, HDMI support 4K output
Multi-screen Display Main:1, 4, 6, 9, 13, 16, 20, 25, 28, 33, 36, 40, 49, 64, 81, 100, 121, 144 split; sub:1, 4, 6, 9, 13, 16 split.
HDMI/VGA Output 3840*2160(HDMI) or 1920*1080 or 1680*1050 or 1440*900 or 1280*1024 or 1024*768
Interface 2 RJ-45 ports(1000M)
Power Supply 800W Redundant power
Hard Disk 16 SATA, Max. 10TB for each; Independent HDD rack,support hot swap,RAID storage
USB 6USB ports
Working Environment Temperature: 0˚C~60˚C; Humidity: 10%~80% ( non-condensation)
Dimension 550mm×440mm×133mm
Weight 18Kg
