Windows PC CMS Client Software Specification

Introduction

CMS Client--A X86 windows-based Center Management System. Up to 64 channels analogue&IP video&audio on DVR & NVR real time preview supported; 16 / 24 channel D1 preview and 1080P / 720P single preview; Support GPU decoding; Intel 6th,7th CPU support H.264&H.265 hardware decoding both; Max support 6 channel 8MP or 12 channel 4MP or 20 channel 1080P or 64 channel D1 display with i3 CPU; Support to playback video from different NVSS / Hybrid NDVR / standalone DVRs; Max. 16channel simultaneous playback; Up to 32 POS machine connection supported;Support up to 24 monitors with 1-16 split for each monitor; Up to 64 groups with 1-64 split mode for each group supported.

Download CMS Client Software Download Manual

Applications

This system widely used in bank, telecommunication, transportation, factories, warehouse, irrigation,ect..

Special Features

Device Tree & Permission Management

Support Device Tree Manage function;
Support up to 3 layers Device;
Permission for different user to each folder;
NVSS Client(both PC based iOS / Android based) can connect CMS by authorized user ID and get permitted;

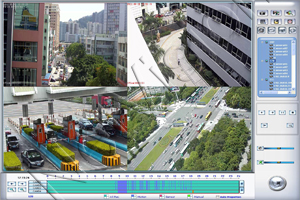

Multi-DVR Playback

Support to playback video from different Hybrid NDVR / standalone DVRs;
Support maximum 16 channels at the same time;
Support synchro playback, adjust play speed;
Support to convert video and audio AVI / MS MPG4 format;

Redundant NDVR

Prevent important datas lost for some IPCs in an NDVR;
The redundant NDVR will connect all IPCs on the associated NDVRs if they are detected not running normally;
One redundant NDVR could associate with many others to make it more effective.

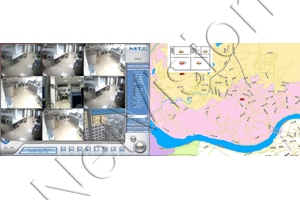

Powerful E-map

Support Multi-layer customized Emap;
Alarmed cameras instant pop up display & auto adjust split mode;

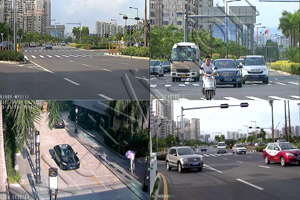

Virtual Matrix

Support up to 24 monitors with 1-16 split for each monitor;
Video displayed in each window adjustable and sequence available;
Support to display all analogue or IP video;
Support more than 20 world's famous brands of IP devices.

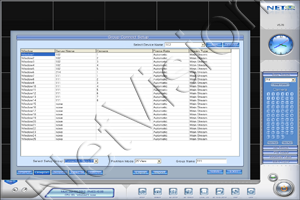

Powerful Group Display

Support users to connect a number of cameras conviniently;
Up to 64 camera each group support and up to 64 groups supported;
User friendly Design: One button to switch between different groups.

Detailed Features

General

Up to 64 channels analogue&IP video&audio real time preview supported
Windows7/10 64-bit OS supported
Multi monitors display supported
Group display & sequence display supported
Customized software including GUI & functions
Multi display resolution supported
Support GPU decoding

E-map

Support Multi-layer customized Emap;
Alarmed cameras instant pop up display & auto adjust split mode;

Playback

Support maximum 16 channels at the same time
Support to playback video from different Hybrid NDVR / standalone DVRs
Useful ICON Search, play different time period video of the same camera in 4 windows
Support synchro playback, adjust play speed
Both video and audio can be converted to AVI / MS MPG4 format

PTZ Function

Control PTZ or speed demo through network by mouse
Motion / Sensor alarm trigger PTZ to call a preset
Set preset position for each camera independently
Tour all preset position

Alarm Function

Support motion alarm and video lossing alarmwith email
Interval time between 2 email can adjust form 3 to 5 seconds

Network Function

Support P2P、ADSL、DDNS、LAN、Internet etc.
Built in DNS for adding IP devices through Dynamic Name
It adopts advanced network compression technology
Support remotely connection with Hybrid NDVR / NVSS

Permission management and Device Tree

Support Device Tree Manage function
Two level user permission management
Camera view / playback / audio / PTZ right lockable to special user
Support up to 3 layers Device
15 User Access Rights and 6 Setup Rights lockable to special user
