Windows PC Hybrid NDVR Software Specification

Introduction

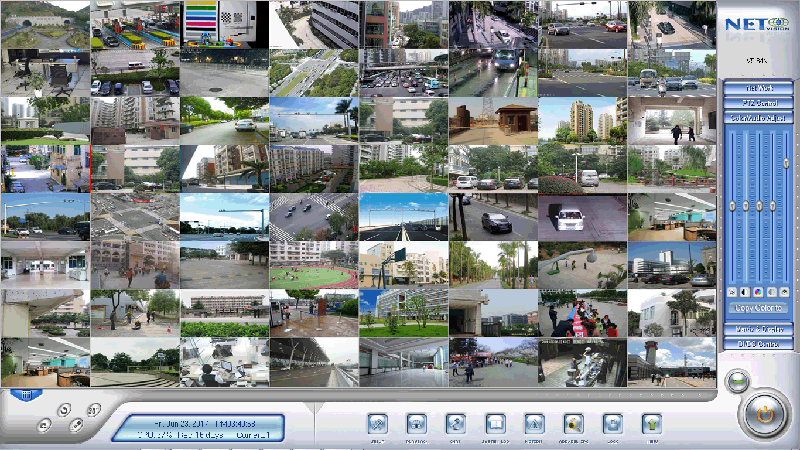

Hybrid NDVR--A X86 windows-based Hybrid Network Digital Video Recorder. Up to 64 channels analogue&IP video&audio real time preview&recording supported; 16 / 24 channel D1 preview and 1080P / 720P single preview; Support GPU decoding; Intel 6th,7th CPU support H.264&H.265 hardware decoding both; Max support 6 channel 8MP or 12 channel 4MP or 20 channel 1080P or 64 channel D1 display with i3 CPU; Max. 16channel simultaneous playback; Up to 32 POS machine connection supported; Up to 16 groups with 1-64 split mode for each group supported.

Download Hybrid NDVR Software Download Manual

Applications

This system widely used in bank, telecommunication, transportation, factories, warehouse, irrigation,ect..

Special Features

Intelligent Video Analysis

Intelligent Video Analysis for more intelligent surveillance;
Seven IVA function including Face Detection, Intrution Detection, Movement Direction Detection etc. adapt compiant different occasions;
IVA makes your surveillance more prefessional;
IVA playback and locate according to snapshot or logs supported;
Leading-out Object Counting result in chart supported;
IVA events trigger sending email supported.

HD IP System Solution

Max support 6 channel 8MP or 12 channel 4MP or 20 channel 1080P or 64 channel D1 display with i3 CPU;
24 * 720P with 3Mb/s @25 fps / 16 * 1080P with 6Mb/s @25fps recording;
Support more than 20 world's famous brands of IP cameras;
Advanced solution of GPU decoding can save CPU and RAM and make the system more stable.

POS-DVR

Up to 32 POS machine connection supported;
Multi channel POS Playback supported;
Filter POS data and video according keywords supported;
Change display color for pre-difined keywords supported.

Powerful Playback

Support up to 16 channel synchronously playback;
Support Record type filter;
Support Smart Search, Icon Search;
Both video and audio can be converted to AVI / MS MPG4 format;

Group Display

Display special camera in special window supported;
Up to 16 groups with 1-64 split mode for each group supported;
Pre-defined Sequence & Close image display for saving resources;
Support software start to display a pre-defined group.

Permission Management

Two level user permission management;
Camera view / playback / audio / PTZ right lockable to special user;
15 User Access Rights and 6 Setup Rights lockable to special user.

Detailed Features

General

Up to 64 channels analogue&IP video&audio real time preview&recording supported
Windows7/10 64-bit OS supported
Multi monitors display supported
Group display & sequence display supported
Customized software including GUI & functions
Multi display resolution supported
Support GPU decoding

Recording & Storage

Adopts the most advanced H.264/H.265 compression technology;
24 * 720P with 3Mb/s @25 fps / 16 * 1080P with 6Mb/s @25fps recording;

Playback

Max. 16 channel playback while recording
Accurate to the exact moment / second and play
Useful ICON Search, play different time period video of the same camera in 4 windows
Filter record by different record mode
Both video and audio can be converted to AVI / MS MPG4 format

PTZ Function

Control PTZ or speed demo through network by mouse
Motion / Sensor alarm trigger PTZ to call a preset
Set preset position for each camera independently
Tour all preset position

Alarm Function

Support motion alarm and video lossing alarmwith email
Interval time between 2 email can adjust form 3 to 5 seconds

Network Function

Support P2P、ADSL、DDNS、LAN、Internet etc.
Built in DNS for adding IP devices through Dynamic Name
It adopts advanced network compression technology
Support remotely connection from CMS, Android / iOS (NVSS Client), NVMS through network

Permission management and system protection

Two level user permission management
Camera view / playback / audio / PTZ right lockable to special user
15 User Access Rights and 6 Setup Rights lockable to special user
