NVSS all Function Introduction

64G SSD with 64bit Linux OS and NVSS software

NVSS software is a Linux PC NVR Software, it is installed into mSata card which is with a 64bit Linux OS, also this mSata card supports all motherboards with intel CPU (support GPU hardware decoding), including 3th, 4th, 5th,6th,7th intel celeron, Pentium, core i3/i5/l7 CPU; supports dual monitors; 6th / 7th intel CPU with skylake display card, supports H.265 hardware decode;

Introduction

NVSS--A X64 Architecture-based Embedded Linux Super Network Video Recorder. Supports Max.144channel preview; Max. 256 channel total 512Mbps record; Max. 16channel simultaneous playback; CPU & HDD & Log information realtime display. Click here to calculate record HDD space..

Applications

This system widely used in bank, telecommunication, transportation, factories, warehouse, irrigation,ect..

Special Features

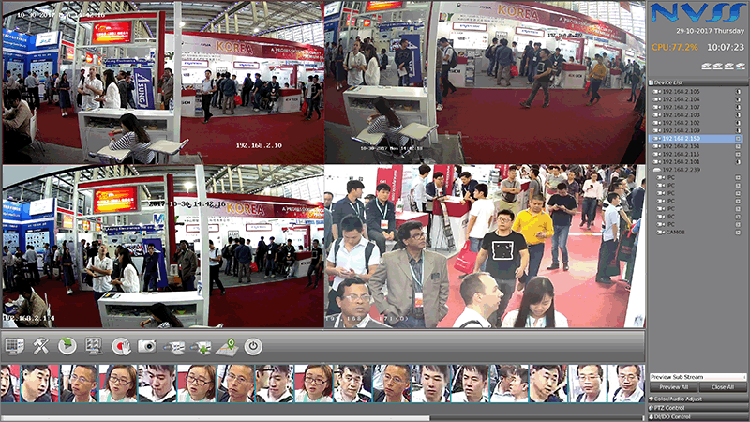

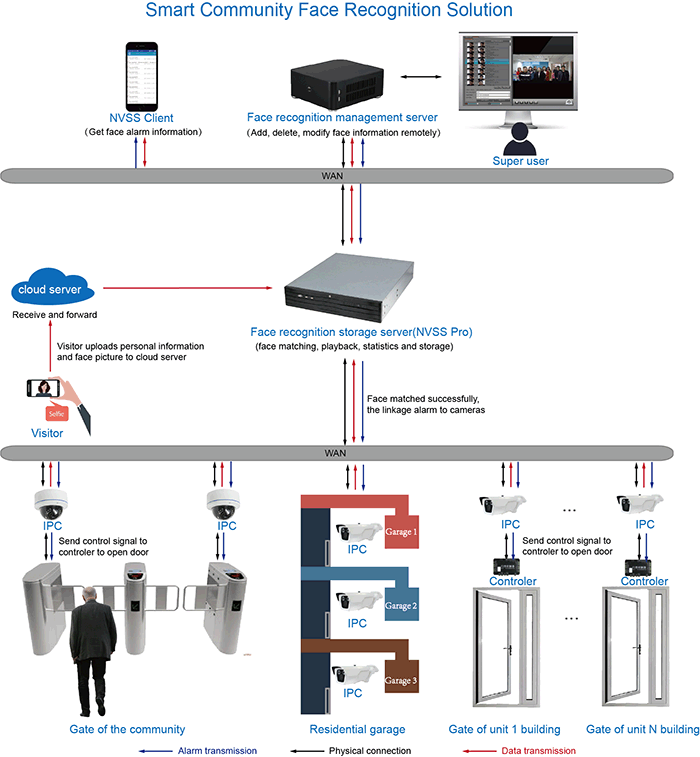

Face recognition

Face live view
Build black / white list
Alarm pop up when a captured face is with a higher similarity than the one set in blacklist
Face alarm playback according UID, similarity [Details...]

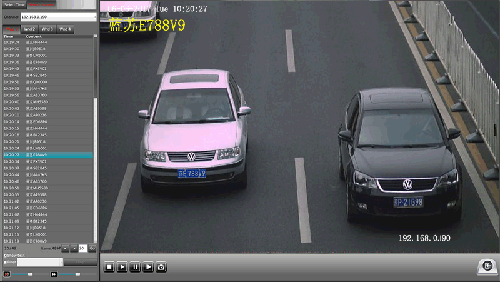

LPR(License Plate Recognition)

When there is a car on the live view, will get and show the license plat number automatically on live view, also you can playback the video with license plat number in LPR playback.[Details...]

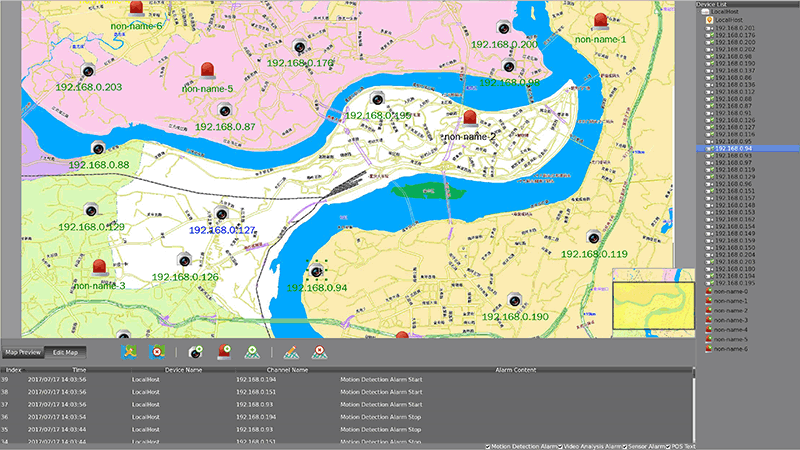

E-Map

Add / delete Map for server
Show alarm with red light on the hot spots
Double click the icon of hot spots to display video of corresponding cameras
Add / delete / modify cameras which are shown on map as hot spots
Set color for the name of hot spots [Details...]

Group display

Support 4K resolution, Max.144 splits for main monitor.
Max. 16 display groups for each monitor
Support sequence in every display window
Support to display special group when startup
Support to drag any camera into any window and save it as a display group.[Details...]

POS Integration:

Max. 64 POS connection in one system
Support LAN connection and COM port connection
Max. 4 channel video playback with POS information
Support POS devices which send plain text data based on ASCII code[Details...]

Intelligent Video Analysis;

Face Detection;
Intrusion Detection;
Object Counting;
Movement Direction Detection;
Missing Object Detection, Unattended Object Detection, Tripwire Detection[Details...]

HDD Management

Max 24 HDDs
Max 10TB for each HDD, totally 240TB
Hot-Swap is supported for securing video data
HDD auto detect and format for record.[Details...]

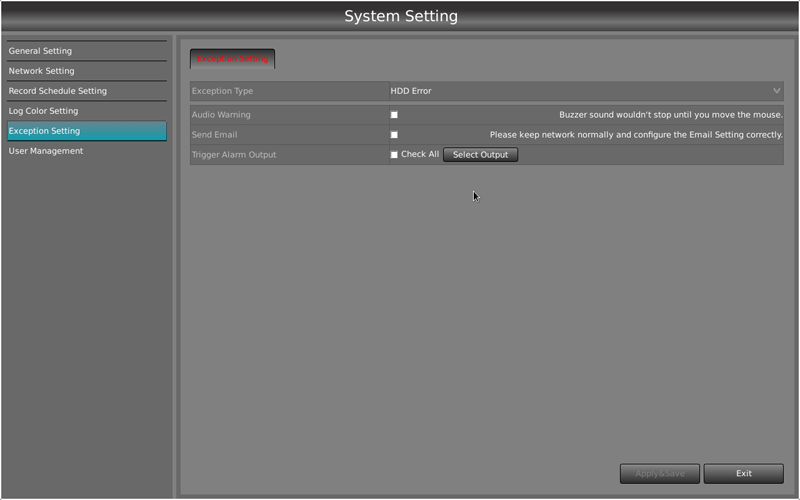

Event / Alarm trigger

Motion linkage Email / buzzer / DO
IP disconnect trigger Email / buzzer / DO
HDD Error / Full trigger Email / buzzer / DO
Record Loss trigger Email / buzzer / DO. [Details...]

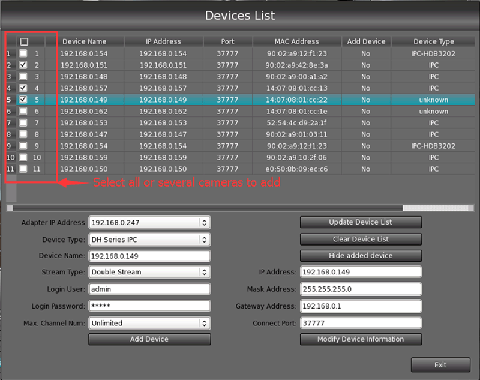

Automatically add a batch of IP devices

User can choose several or all the cameras to add into NVSS at one time.
User defines the IP address range
User defines the devices names
The NVSS will then scan cameras and modify IP address & Name for them and then add into the system automatically. [Details...]

Permission Management

Two level user permission management:Manager and operator
Playback, capture picture , channel setting , preview video , PTZ control
20 User Access Rights lockable to special user[Details...]

Camera Settings

Display Setting
Video Setting
Motion Detection
Privacy Mask
Alarm Input Setting
PTZ Setting
Linkage Setting. [Details...]

Intelligent Playback

Max. 16ch@8MP / 4MP /1080P / 720P video simultaneously playback
Smart Search
Icon Search [Details...]

Instant Playback

Choose a channel to do instant playback, there are 10s,30s,1min,5min,8min for choosing.[Details...]

ICON search

Select a camera to do ICON searching, it support Max.16 splits to search, you can choose interval time(2s-120s) among each slipt, it is convienent for you to find one thing you just lost.[Details...]

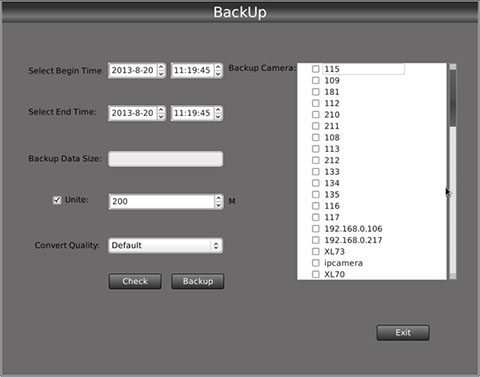

Backup

Local backup & Remote backup
Convert to AVI format when backup
Backup onto USB Disk [Details...]

Share Mouse & Keyboard

Special method for sharing Mouse and Keyboard for several NVSS [Details...]

Remote Help

With desktop version, users can use VNC and TeamViewer to connect to a remote NVSS system to help end users to setup correctly, check problems, debug, fixing problems [Details...]

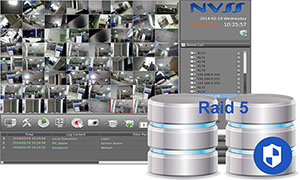

Raid

When your system has more than six HDD, you can enable this RAID function. It doesn't need RAID card. It is best that the HDD which are used to RAID have same memory. [Details...]

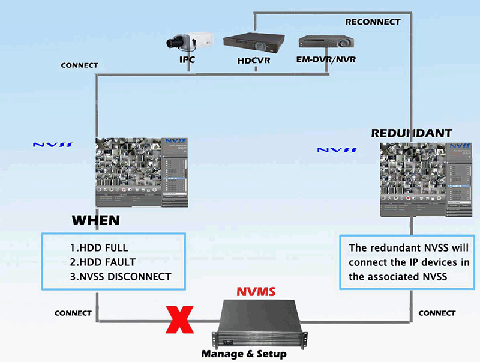

Redundant NVSS

With the management of Linux based CMS software which is named with NVMS, NVSS can connect IP devices from another NVSS and record automatically if the working NVSS has some issues occasionally(such as HDD error) [Details...]

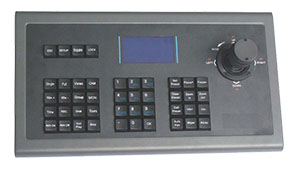

Netwrok Keyboard

PTZ control / preview control
4-axis joystick
Support up to 256 device
Network connection [Details...]

Friendly main interface

256 channel online / record status information
Realtime CPU information
Realtime HDD record status information
Realtime Log information[Details...]

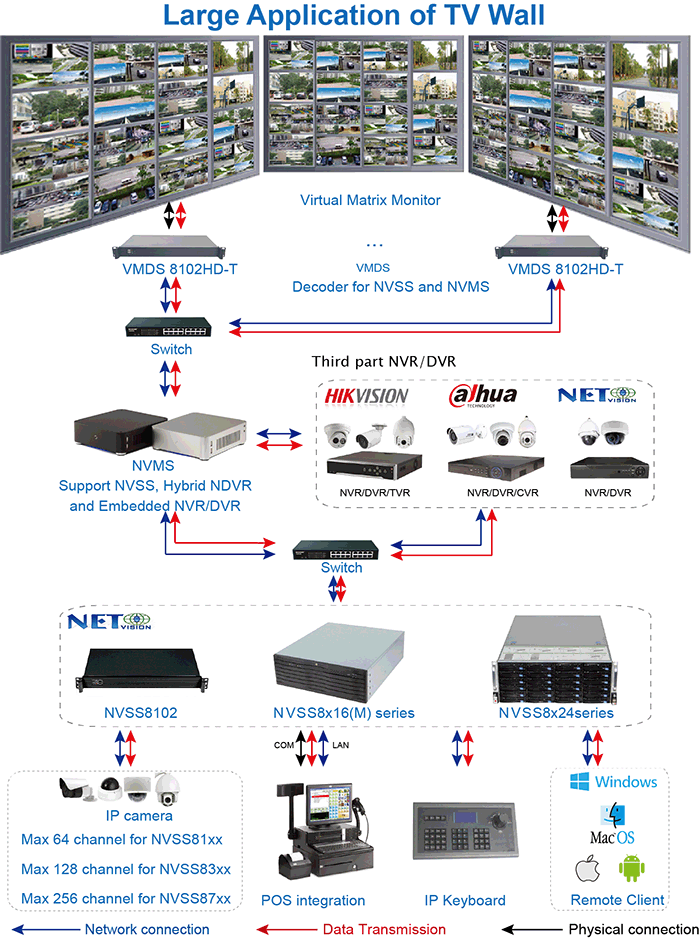

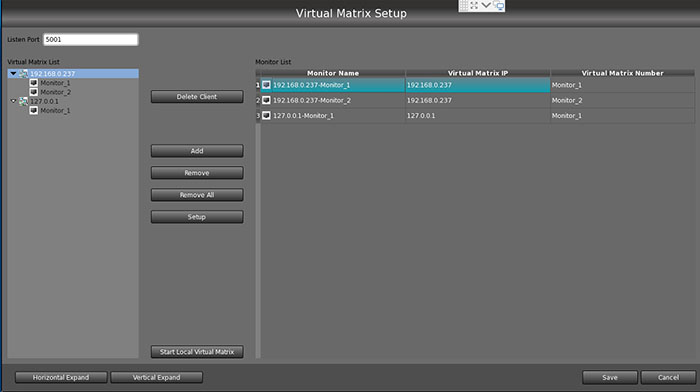

Virtual Matrix Function

Support 144 splits on main monitor, 16 splits on sub monitor
Max. 16 display groups for each monitor
Support sequence in every display window
Support to display special group when startup
Support to drag any camera into any window and save it as a display group.[Details...]

Detailed Features

General

Max. 256 channels HD1080P IP video recording
Max. 24 Hot-Swap HDDs with 10TB for each HDD
Useful UI with CPU / HDD / Log information real-time display
Max. 3840*2160 resolution
OSD & LOGO adjust position freely
Compatible with analogue EMDVR, HDCVI system, HDTVI system, IP cameras through network
Sensor / Motion trigger Email / Buzzer / DO
Control PTZ in the current preview window use mouse or keyboard

Recording & Storage

Adopts the most advanced H.264/H.265 compression technology
Max. 256ch@8MP / 4MP / 1080P recording
Max. 24 Hot-Swap HDDs with 10TB for each HDD
Video resolution / quality / bitrate type(CBR / VBR) & value / fps adjustable
Search new HDDs and format for recording automatically
Camera record status, HDD work status realtime display

Playback

Max. 16 channel playback while recording
Accurate to the exact moment / second and play
Useful ICON Search, up to16 splits to search, support to choose interval time(2s-120s) among each slipt
Filter record by different record mode

PTZ Function

Control PTZ or speed demo through network by mouse
Motion / Sensor alarm trigger PTZ to call a preset
Set preset position for each camera independently
Tour all preset position

Alarm Function

Max. 256 channels sensor input and 256 channels sensor output
Sound warning when alarming for each camera / sensor
Send Email automatically when camera or sensor alarming

Network Function

Support P2P、ADSL、DDNS、LAN、Internet etc.
Built in DNS for adding IP devices through Dynamic Name
It adopts advanced network compression technology
Support remotely connection from CMS, IE, Android / iOS (NVSS Client), NVMS through network

Permission management and system protection

Two level user permission management:Manager and operator
Playback, capture picture , channel setting , preview video , PTZ control
20 User Access Rights lockable to special user.

Desktop and non-desktop

support to swith between desktop and non-desktop, when it is in desktop, system will be like a windows OS, you can scan websitevia firefox browser, also there is teamviewer for you to get help remotely.

Add a batch of cameras at the same time

Support to choose any cameras you want to add, need to make sure all of them are connecting with same protocal and same password.
